2 Heat Exchangers Wall Hung Boilers Lpg Condensing Combi Boiler ISO14001

QINGDAO HIOUNCE HVAC EQUIPMENT CO.,LTD
Contact Now

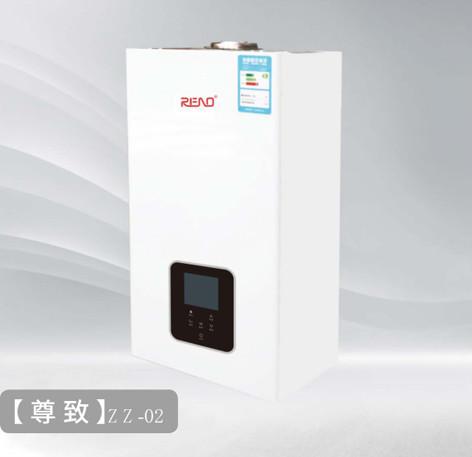

2 Heat Exchangers Wall Hung Boilers Lpg Condensing Combi Boiler ISO14001

Brand Name : RENO

Model Number : L1PB20-A(F3)

Certification : ISO14001,OHSAS18001,ISO9001,3C

Place of Origin : CHINA,QINGDAO

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs per month

Delivery Time : 30days after receiving the deposit

Packaging Details : ach product in plastic bag which comes with the product instructions and foam packaging, then carton packaging outside with another thicker plastic bag.

Installation : Wall Mounted

Housing Material : Stainless Steel

Power (KW) : 20

Gas Type : NG/LPG

Color : WHITE

Product Name : Wall Mount Gas Boiler

Gas pressure(pa) : 2000pa/2800pa

Display : LED Displayer Optional

Thermal efficiency(%) : ≥90

Contact Now

2 Heat Exchangers Heating & Hot Water Type Wall Mounted Gas Boiler

GAS WALL HANGING BOILER INSTRUCTIONS

1. Convenience

Touch controlmore precise

2. Environmental protection

Eenrgy saving and environmental protectionFollow the trend

3. After sale

7*24 after-sales service,worry free

4. Safe and Reliable

With 21 kinds of safe protectionLow failure rate

5. Comfort

Ultra-quiet operationmore comfortable

6. Top international component and high quality

7.The touch screen operation

8.The stepless frequency conversion fan,to ensure energy-saving and high efficiency

TECHNICAL DATA OF GAS WALL HANGING BOILER

MODEL L1PB20-A(F3)

SPECIFICATIONS

A20-F3/B20-F3

RATED INPUT POWER(KW)

20

RATED OUTPUT POWER(KW)

18

THERMAL EFFICIENCY(%)

≥90

RATED VOLTAGE FREQUENCY(V/Hz/W)

220/230/50

GAS TYPE

NG/LPG

GAS PRESSURE(Pa)

2000/2800

TEMP.RANGE OF HEATING WATER(℃)

DHW:30-60 HEATING HOT WATER:30-80

△T=30℃ HOT WATER SUPPLY(KG/MIN)

8

APPLICATIVE WATER PRESSURE(MPA)

0.02-0.8
DIMENSION(HIGH*WIDE*THICK) 740*410*315
WEIGHT(KG) 30
DIAMETER OF SMOKE PIPEφ(COAXIAL) φ60/100

PRODECT DISPLAY

2 Heat Exchangers Wall Hung Boilers Lpg Condensing Combi Boiler ISO14001

High-grade touch screen design,reveal inteligent quality

2 Heat Exchangers Wall Hung Boilers Lpg Condensing Combi Boiler ISO14001

Sanitary hot water precise control constant temperature,relaxed and comfortable enjoy

2 Heat Exchangers Wall Hung Boilers Lpg Condensing Combi Boiler ISO14001

Power products function,fully meet the personalized requirements

2 Heat Exchangers Wall Hung Boilers Lpg Condensing Combi Boiler ISO14001

Global unified strict production standards

2 Heat Exchangers Wall Hung Boilers Lpg Condensing Combi Boiler ISO140012 Heat Exchangers Wall Hung Boilers Lpg Condensing Combi Boiler ISO14001

Three self-exhaust pumps,effectively improve the system efficiency.

ABOUT US

Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade hanging wall boiler, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.

Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.2 Heat Exchangers Wall Hung Boilers Lpg Condensing Combi Boiler ISO14001
